The Jobs System is Unity's multithreading solution. It is designed to work with the highly optimized Burst Compiler that is built into Unity. Burst can only work with a subset of C# called High Performance C# - but can massively improve for performance.

Jobs uses Work Stealing, which allows worker threads to take work on that is assigned to other threads in order to get through the work queue faster. It also has good built in saftey features that ensure programmers write thread-safe code.

While Jobs is very very cool, it is not a tool for every situation. Jobs is useful for processing collections - like handling movement for 2000 agents or doing math on a pathfinding graph. However, it requires a different approach than traditional single-threaded code, and can even hurt performance if used in some situations.

I have recently had the itch to learn something new and technical that would bring my skills to the next level. I decided it would be worth taking the time to learn Jobs. I also recently released a game on Steam - Survive the Squids - that has large numbers of agents pathfinding at once, and I might want to make another like that soon.

In the beginning, I wanted to do a Jobs implementation of the A* pathfinding algorithm. All projects I have done so far either used A* or the Unity Navmesh System. So, I went ahead and got started. I built out the core logic for A* with the help of AI and got a simple solution working, but two problems quickly arose.

So after a little research I found a solution - the Flow Field algorithm. The Flow Field algorithm is pretty simple - it calculates the distance at each grid point from the target. Then, it generates a vector that represents the direction towards the next-lowest-cost grid point, which will lead the agent towards the target. Flow Field is good when you just need a lot of agents to be able to move towards the same point (definetly the case in a Survivorslike game) without worrying about optimality. Of course, this made me realize that A* was never an appropriate algorithm choice for most of my previous games anyway - but lesson learned!

So I decided to pivot and implement a single-threaded Flow Field algorithm. Easy enough - again with the help of AI, I had that boiler plate code done within an hour or two. As is the case with AI, reviewing the code and ensuring it was laid out in a way that makes sense and is maintainable took a little extra time. At this point, it was time to begin "Jobification."

I first addressed the agent's movement in two parts - retrieving the vector for movement from the flow field, and then applying that movement to the agent's transform. For the first part a simple IJobParallelFor worked fine. The second required IJobParallelForTransform - a very cool job interface. Normally, jobs can only operate on unmanaged code - things like structs as opposed to class, NativeArrays, floats, uints, etc. However with IJobParallelForTransform one can make modifications to a GameObject's transform! Anyways, using Jobs requires restructuring the code such that it works with unmanaged types, it uses the "math" library rather than "mathf", ensuring that intialized objects are disposed, and ensuring that job dependencies are handled. The saftey system is very particular and won't let you get away with any loose ends!

After these first two implementations, I saw a minor FPS boost - but not one that I felt really achieved what I wanted. So, I decided to jobify the flow field generation. Flow field generation happens whenever the target moves, and if you're making a game with the player as the target, that's going to be very frequent. So, it is an essential thing to jobify. I broke the flow field generation down into three different jobs - intialization, integration, and flow generation. This part went pretty smooth - and I would have expected to see a large FPS boost - but again I only saw a few frames difference!

At this point, I stopped ignoring a thought that had been sitting in the back of my head: "What if the bottleneck with 2000 GameObjects isn't pathfinding?". Using the profiler, I noticed a huge amount of time being taken up by Physics. I had previously ignored this (tunnel vision!), but when I inspected my Agent prefab, I noted that every agent had a collider - and that is a huge deal! Removing the collider from the agents REALLY brought the FPS up; in fact FPS doubled from just that step. If we did want to detect collisions (for example if we wanted to make a shooter game out of this), there are known solutions for that which are much more lightweight. At this point, the effects of the jobs I wrote were much more apparent too, now that the physics bottleneck was removed.

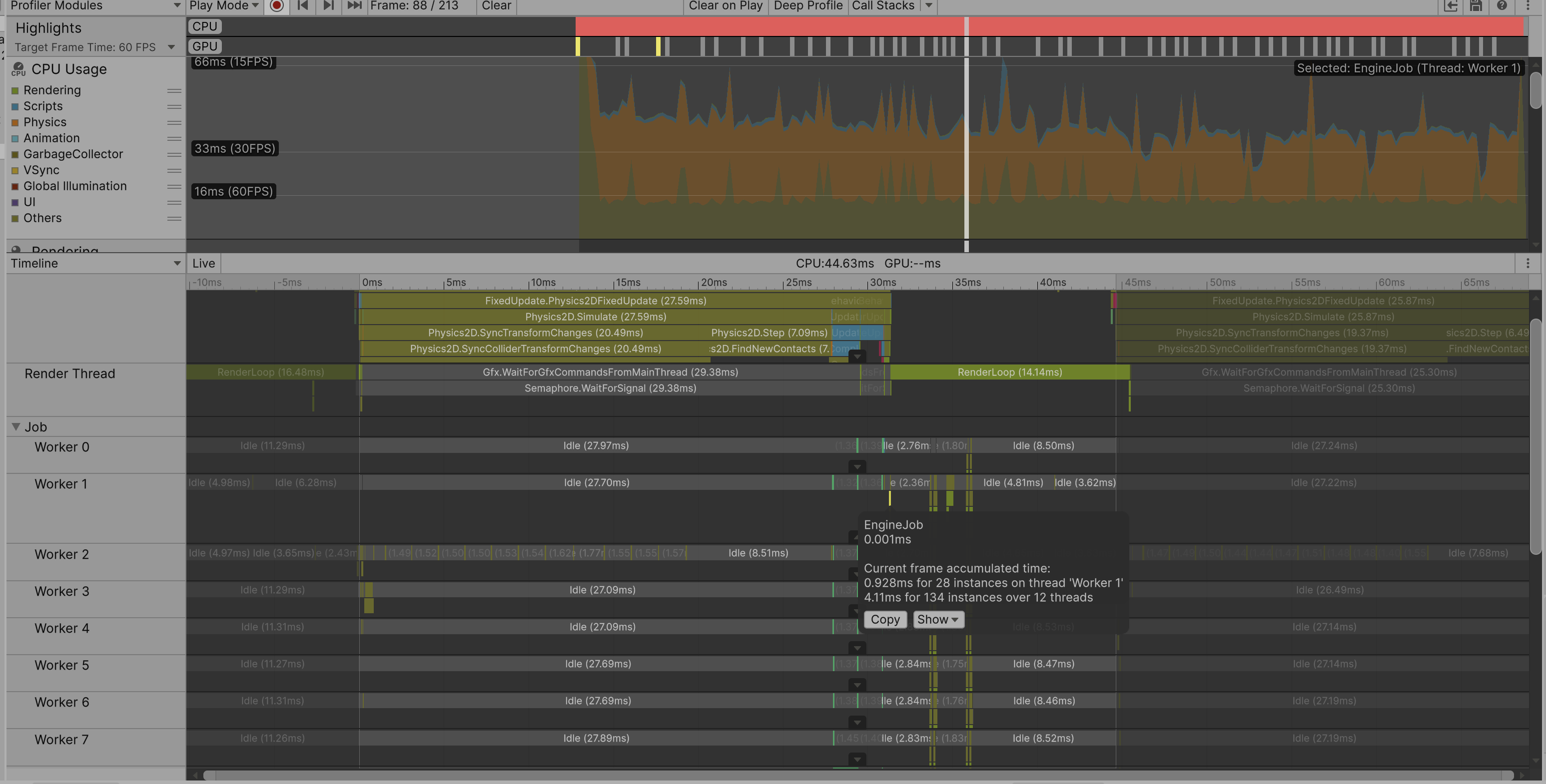

Observe the orange colored graph representing the effect of Physics calculations on the system.

In the picture below - observe the effect of the colliders being removed - physics isn't even on the graph!

And that's about where I decided to wrap up! I had implemented about 6 jobs, and I feel that I have a good grasp on how to do so and what kind of code is a good candidate for the Jobs System and what isn't. I could have added many more optimizations at this point - for example an obvious optimization would have been not regenerating the flow field every single frame. And the same could be applied to agent pathfinding - do they really need to know where they're going every frame? And of course there are probably algorithm optimizations with the flow field generation that I could develop. But - the goal has been met, and it's time to move on.
